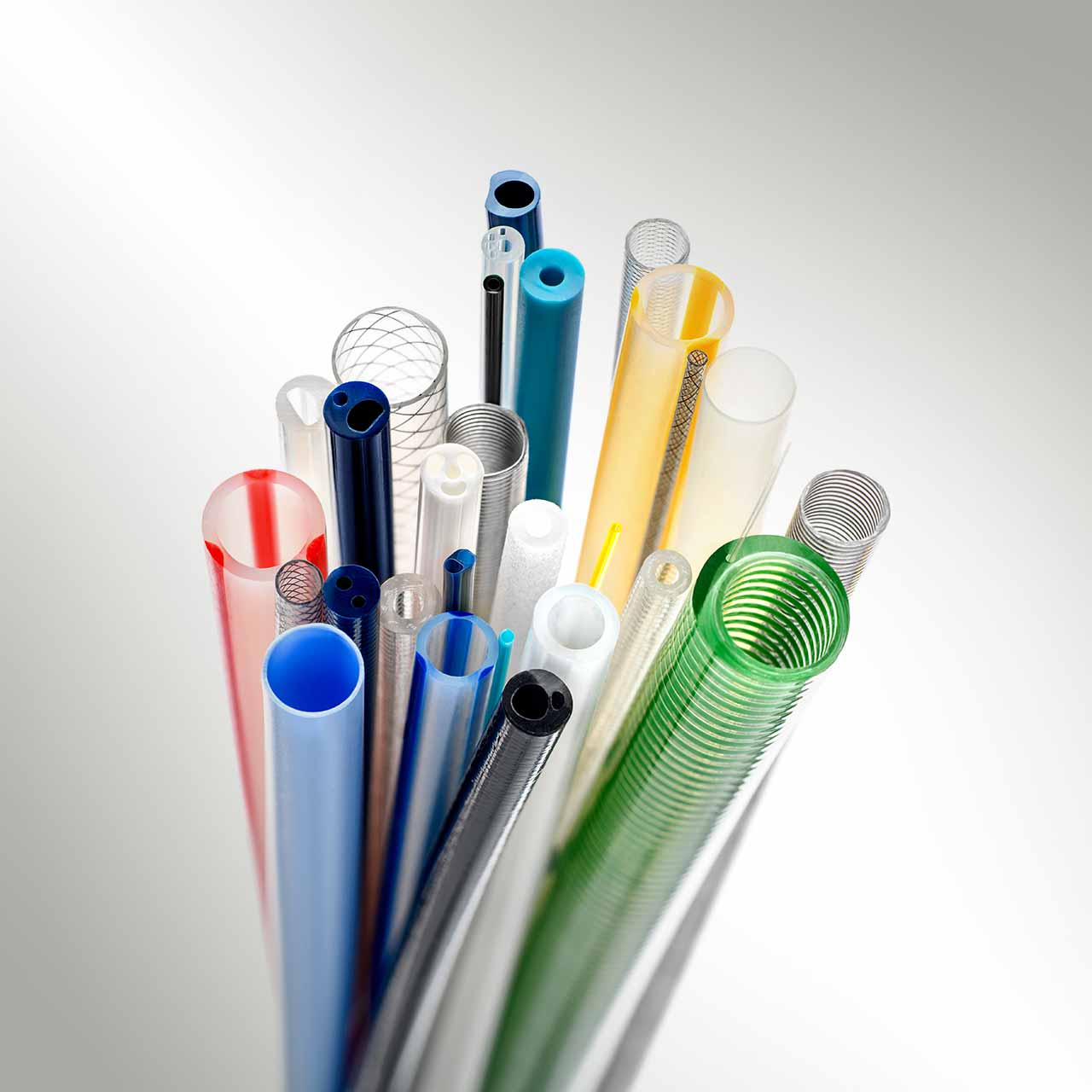

Fluid Management Tubing

Materials

• Standard materials including PVC (DEHP, non DEHP) polycarbonate, HDPE, LDPE, and polyurethane

More on Materials

Dimensions

• OD range: 0.020” (0.508 mm) min; 1.250” (31.75 mm) max
• ID range: 0.010” (0.254 mm) min; 1.200” (30.48 mm) max
• Tolerances may vary depending on durometer, material, and size of tubing
• Up to 6 lumens depending upon size or material

As a high-end medical tubing extruder, our capabilities include coextruded and triextruded tubing, aligning materials with different performance properties into a single solution.

Capabilities

• Multilayer materials
• Wire encapsulation
• Coiled tubing
• Paratubing
• Solvent and UV bonding
• Striped tubing
• Tapered tubing
• Bump tubing

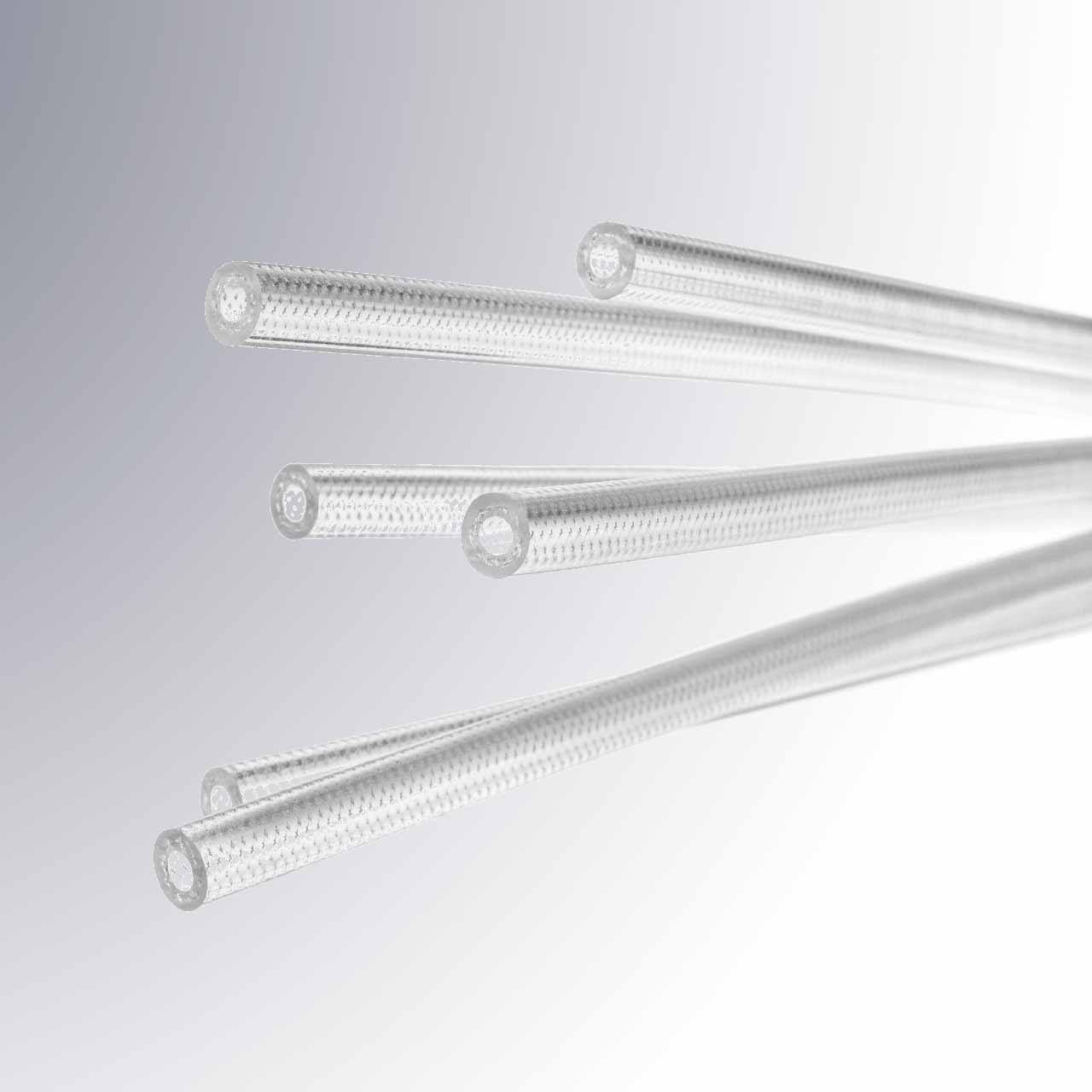

Shop High Pressure Braided Tubing

We’re a leading full-service manufacturer of high-pressure braided tubing (HPBT) for vascular balloon inflation, contrast injection, vacuum procedures, and other interventional needs.

A variety of lengths and dimensions for HPBT are available (see below).

Standard Cut Lengths

• 7-110 inches (178-2590 mm)

Dimensions

• 071 x 0.142 inches (1.80 x 3.61 mm)
• 088 x 0.188 inches (2.24 x 4.78 mm)
• 110 x 0.188 inches (2.79 x 4.78 mm)

Test and Analytical Capabilities

• Constant working pressure of 1200 psi
• Burst pressure exceeding 1700 psi
• Available with or without UV or solvent-bonded connectors
• Custom functional/performance testing upon request
